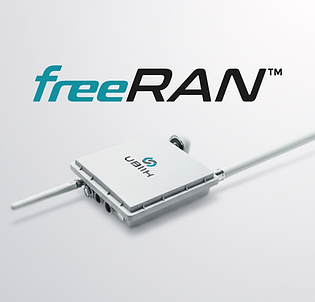

LTE ​Dual Band Base Station

Enhance your network capacity at no extra cost – use the same Base Stations, same UEs and same antennas in the 915MHz band as you are already deploying in B106.

Figma webpage (7).png
Copy of Pyxis B106 Features (10).png

EXPAND YOUR CONNECTIVITY with

Figma webpage (12).png

Dual Band Base Station

Increase your network capacity by leveraging the 915MHz

license-free band.

Increase your network capacity at no extra cost – use the same Base Stations, same UEs and same antennas.

Run less critical applications in the 915MHz band and save your B106 spectrum for higher criticality applications.

Connect more assets, gain better grid visibility

Copy of Pyxis B106 Features (11).png
Figma webpage (11).png

Applications

two in one

User Equipment

Pyxis LTE
Router

Specifications

Standard

LTE FDD RAN (3GPP Release 15 compliant)

Platform

SDR (quad-core ARM Cortex A53 embedded Linux Ubuntu)

Frequency Bands

ISM-FDD (DL: 925-928 MHz, UL: 902-915 MHz)

B106 (DL: 936.5-939.5 MHz, UL: 897.5~900.5 MHz)

Channel Bandwith

ISM-FDD: LTE-M/Cat-1/1bis: 1.4/3 MHz)

B106 (DL: 936.5-939.5 MHz, UL: 897.5~900.5 MHz)

Modulation

LTE:

LTE-M:

NB-IoT:

DL: QSPK, 16 QAM, 64 QAM

UL: QPSK, 16 QAM​

DL: QSPK, 16QAM
UL: QSPK, 16QAM

DL: QSPK

UL: BPSK, QPSK

Multiplexing

SISO

Transit Power

30 dBm maximum

Receive Sensitivity

-100 dBm

Synchronization

GPS, IEEE 1588v2

Backhaul

LTE Cat-4 / Ethernet (10/100/1000 Mbps)

Operation and Maintenance

Power Consumption

Fault Management

Configuration Management

Performance Management

Software Upgrade

< 40 W

Power Supply

PoE++ (60W)

Interfaces

1 x External antennas for LTE-M

1 x External antenna for GPS

1 x External antenna for LTE backhaul

1 x Gigabit Ethernet port, LAN/WAN

1 x Reset button

1 x USIM slot

1 x Micro SD slot

1 x PoE++

Indicators

1 x LED for system power

1 x LED for network connection (Ethernet of LTE)

Physical and Environment

Dimensions: 10" x 10" x 3.28" (254mm x 254mm x 83.5mm)

Operating temperature: -40ºF to 131ºF (-40ºC to 55ºC)

Storage temperature: -40ºF to 158ºF (-40ºC to 70ºC)

Operating humidity: 5% to 90% non-condensing

Ingress protection rating: IP67

Weight with antennas: 3.9 kg
