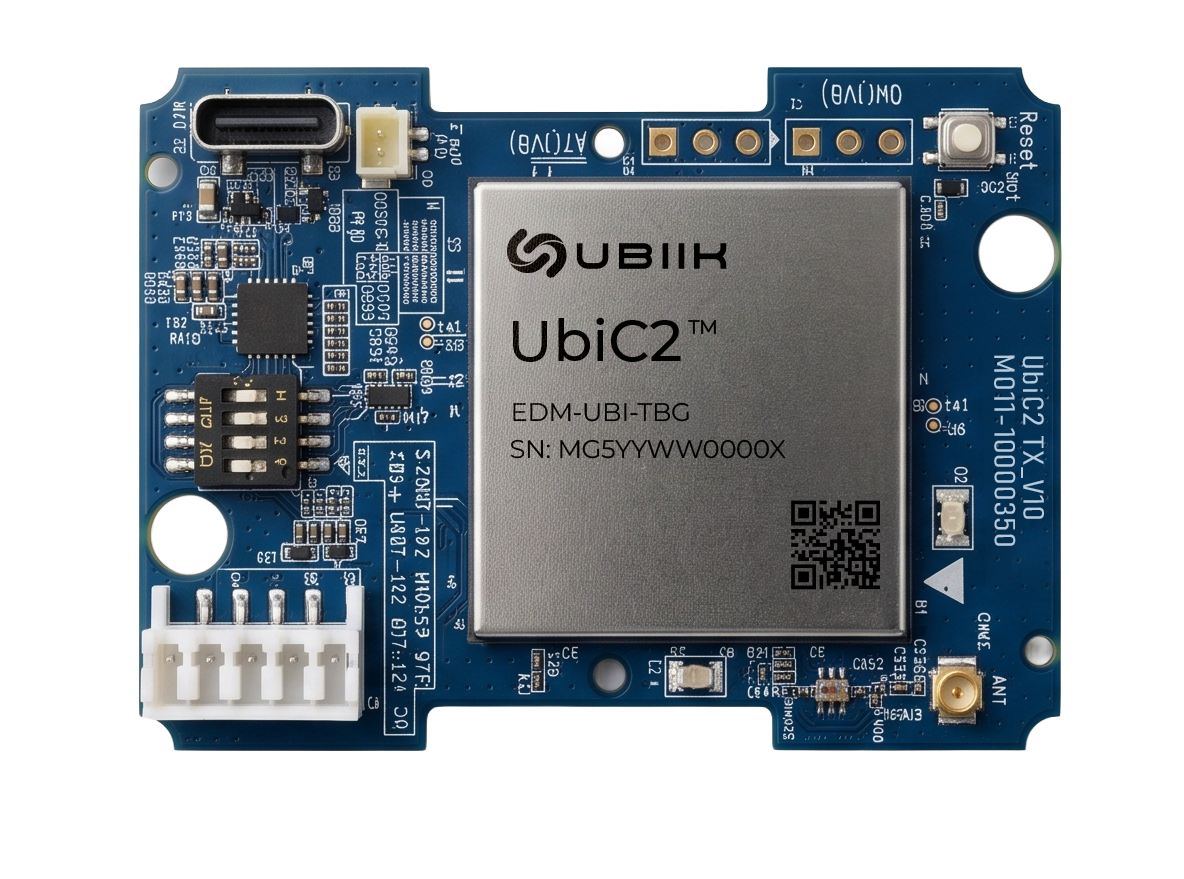

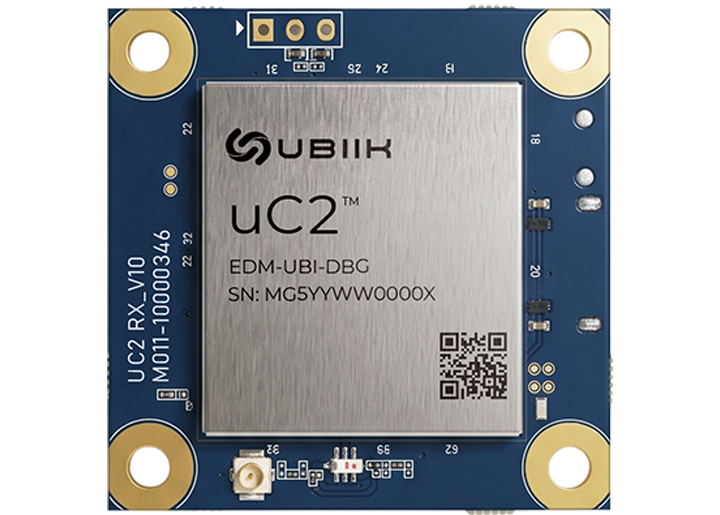

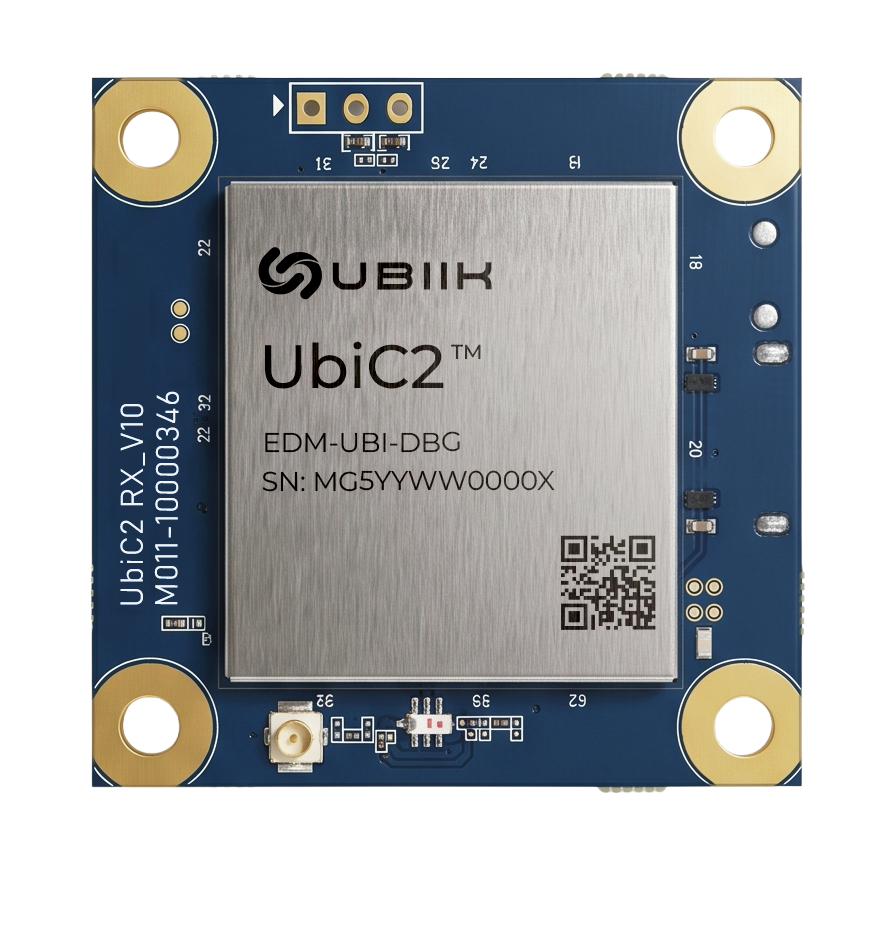

uC2ᵀᴹ is a software-Defined Radio (SDR)-based command-and-control (C2) link that holds control through interference, RF congestion, and long range – on light, low-power hardware.
Multi-Band Operation
Spread-spectrum frequency Hopping
Link Budget
One-way latency
Refresh, 16 ch
Cheap open-protocol links break down under interference, congestion, and range. High-end radios solve it but are large, power-hungry, and costly. uC2ᵀᴹ delivers dependable control in between.
| Low-cost open links | High-end radios | uC2ᵀᴹ | |
|---|---|---|---|
|
Interference resilience |
Weak |
Strong |
Strong — cross-band FHSS |
|
Architecture |
Fixed-band radio |
Wideband OFDM radio |
Software-defined SS-FH |
|
Multi-band range |
One band |
Limited per variant |
~2 GHz (660–2700 MHz) |
|
Size / power / cost |
Fragile |
Large, power-hungry, costly |
Cost-effective; small, light, low-power |
|
|
|
|
NDAA-compliant |
The resilience lives in the waveform, not in heavy hardware — so uC2ᵀᴹ is compact, low-power, and built from NDAA-compliant components.
Cross-band frequency hopping spreads transmissions over many pre-set channels across ~2 GHz, and spread-spectrum processing gain pulls the signal out of noise — so the link stays stable as long as some channels are clear, even in congested or noisy RF.

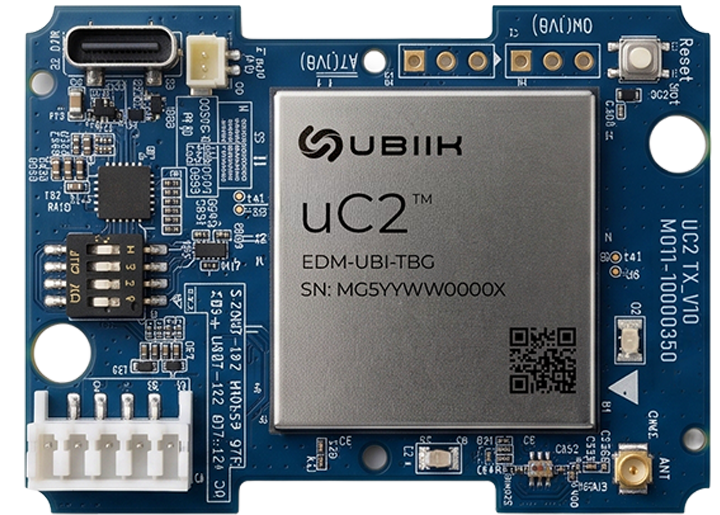

Native CRSF over the standard interface — mounts in a JR-bay controller and pairs with ArduPilot, PX4, or Betaflight. Upgrade the RF link with a module swap, not a redesign.
147 dB link budget and -115 dBm sensitivity reach long range at just 28 dBm (630 mW) — light and power-efficient.
uC2ᵀᴹ tunes across low, mid, and high bands, so operators can select the clearest, least-congested, or most regulation-appropriate spectrum for each site instead of being locked to one crowded band.
Band and channel selection are software settings, configured before each deployment. Coverage to 2.7 GHz arrives in Q4 2026 — one module covers the full range, with no hardware change

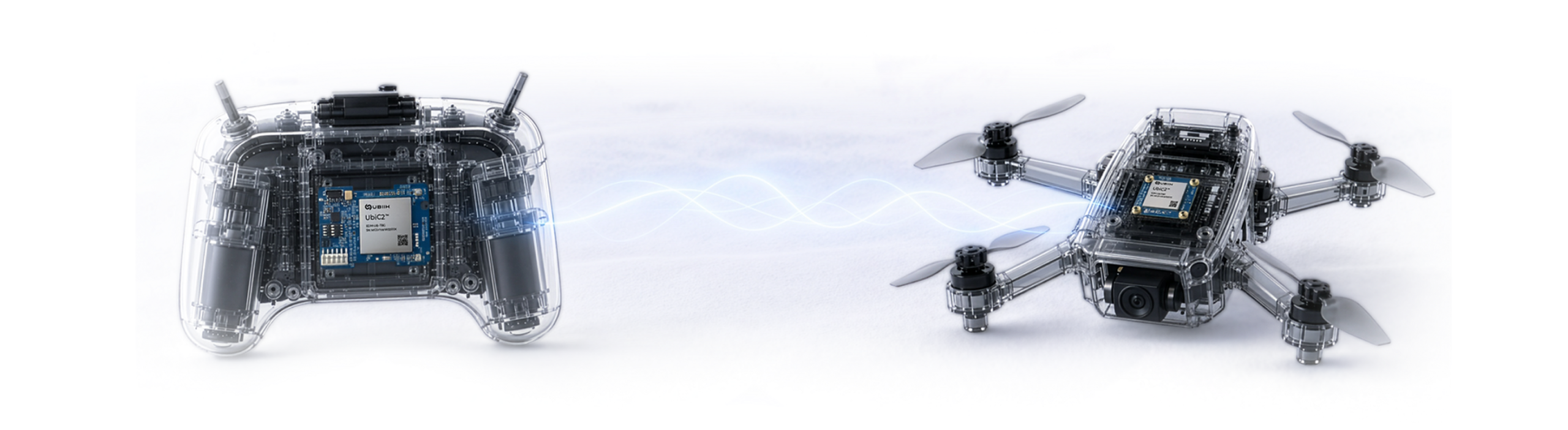

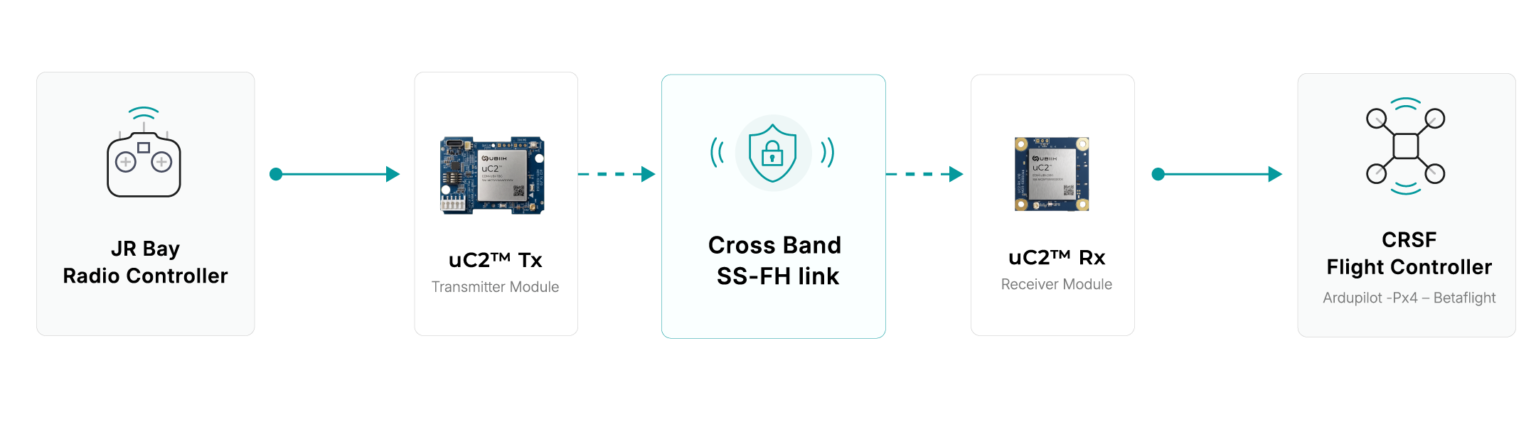

uC2ᵀᴹ uses the standard CRSF / UART interface, so it pairs with any CRSF-capable flight controller — including those running ArduPilot, PX4, or Betaflight — and mounts in any handset with a JR-bay module slot. Upgrade the RF link with a module swap, not an engineering program. Configure over USB-C, never through the active flight link.
uC2ᵀᴹ targets mission-critical applications where strong interference mitigation matters most — operations in congested or difficult RF such as disaster response and search-and-rescue, utility and infrastructure inspection, and public safety. No radio link is immune in every environment, but by combining cross-band frequency hopping with spread-spectrum processing gain, uC2ᵀᴹ substantially improves the chance of holding a stable connection where ordinary links struggle.
Reliable command and telemetry at long range when infrastructure is down and spectrum is crowded

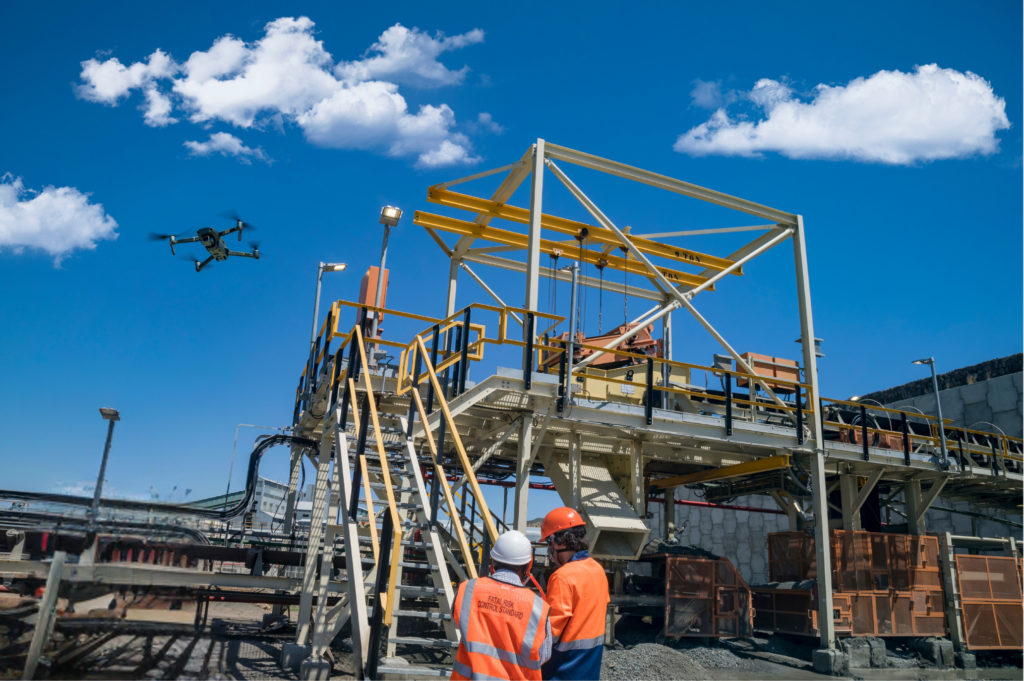

Stable control for bridge, power-line, and pipeline surveys in RF-noisy, hard-to-reach sites
A dependable control link for … visual-line-of-sight flights ov… and industrial areas.
The paragraph is covered by the Figma toolbar in this screenshot.

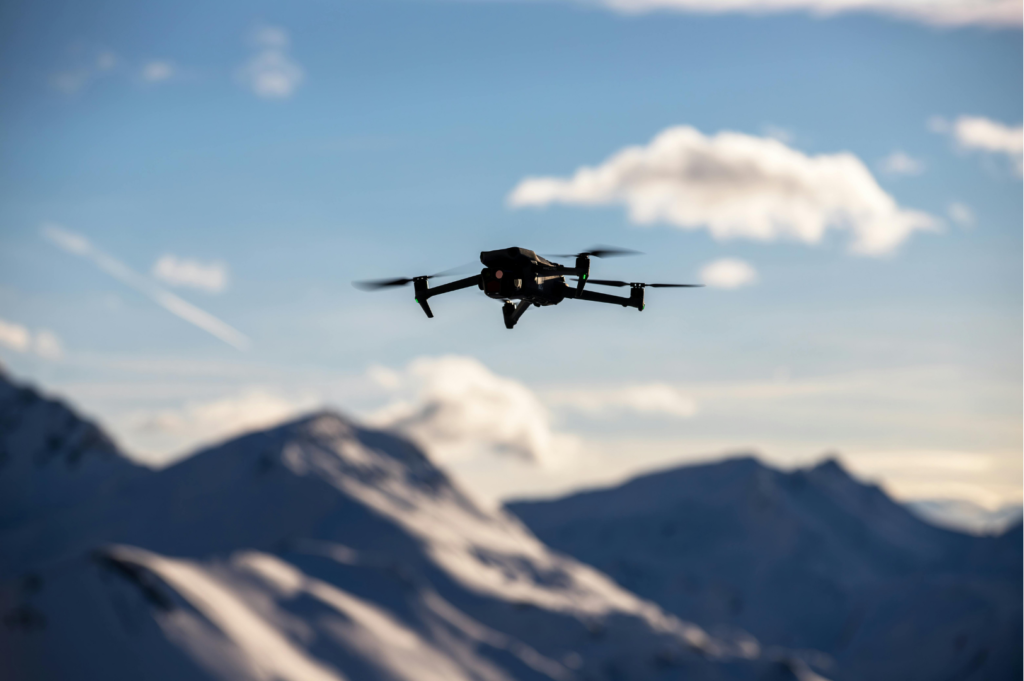

Secure, resilient control for search- rescue and emergency operations.
Range is set by the link budget — the signal margin between transmitter and receiver — and uC2ᵀᴹ wins that budget in the waveform, not with brute-force power. Its PlatinumWave™ SS-FH waveform adds roughly 17 dB of link budget versus a conventional wideband radio at the same C2 data rate: about 12 dB from spread-spectrum processing gain (de-spreading recovers the signal from below the noise floor) plus about 4 dB from operating in a narrow C2 channel with a lower noise floor.
That is what delivers a 147 dB link budget and -115 dBm sensitivity — and why uC2ᵀᴹ reaches beyond 30 km in the low band on just 28 dBm (630 mW), where a wideband radio would need tens of watts.
Longer range, lighter hardware, lower power.
